Xojo DataGrid - Online Guide

strFieldKeyName as String, strIdxsList as String, objRowsToDelete() As BaDataGridRow, intError As Integer, strError As String, strQueryDelete as String

DatabaseDeleteRowError

strFieldKeyName as String, varFieldKeyValue as Variant, objRowToDelete As BaDataGridRow, intError As Integer, strError As String, strQueryDelete as String

DatabaseInserted

DatabaseInsertedError

intError as Integer, strError as String, strQueryUpdate as String

DatabaseUpdated

strFieldKeyName as String, varFieldKeyValue as Variant, objCol as BaDataGridColumn, objRow as BaDataGridRow, varNewValue as Variant

DatabaseUpdateError

strFieldKeyName as String, varFieldKeyValue as Variant, objCol as BaDataGridColumn, objRow as BaDataGridRow, intError as Integer, strError as String, strQueryUpdate as String

FooterCellBackgroundPaint

picFooter as Picture, objCol as BaDataGridColumn

Boolean

FooterCellPaint

picFooter as Picture, objCol as BaDataGridColumn

Boolean

GenericError

strMethodName as String, intErrorNumber as Integer, strErrorMessage as String

HeaderCellBackgroundPaint

picHeader as Picture, objCol as BaDataGridColumn

Boolean

HeaderCellPaint

picHeader as Picture, objCol as BaDataGridColumn

Boolean

LinkCalled

strUrl as String, objCol as BaDataGridColumn, objRow as BaDataGridRow

Boolean

MouseDown

x as Integer, y as Integer

MouseEnter

MouseExit

MouseMove

x as Integer, y as Integer

MouseUp

x as Integer, y as Integer

Opening

QueryExecuted

strQuerySql as String

RowDeleted

idxRowDeleted as Integer, objRowDeleted as BaDataGridRow, boolDelRowFromDatabase as Boolean

RowsCellBackgroundPaint

picCell as Picture, objCol as BaDataGridColumn, objRow as BaDataGridRow

Boolean

RowsCellPaint

picCell as Picture, objCol as BaDataGridColumn, objRow as BaDataGridRow

Boolean

RowsDeleted

idxsRowsDeleted as String, objRowsDeleted() as BaDataGridRow, boolDelRowFromDatabase as Boolean

RowSelected

idxRowSelected as Integer, objRowSelected as BaDataGridRow

SettingsChanged

StartDrag

x As Integer, y As Integer, objRowsDragged() As BaDataGridRow

Enumerations

EnumAlignment

Defines the type of alignment of the contents in a cell.

Enum

Description

LeftTop

Align contents to the left and top within the cell.

LeftMiddle

Align contents to the left and middle within the cell.

LeftBottom

Align contents to the left and bottom within the cell.

CenterTop

Align contents to the center and top within the cell.

CenterMiddle

Align contents to the center and middle within the cell.

CenterBottom

Align contents to the center and bottom within the cell.

RightTop

Align contents to the right and top within the cell.

RightMiddle

Align contents to the right and middle within the cell.

RightBottom

Align contents to the right and bottom within the cell.

EnumCellType

Defines the type of cell, how it will be displayed.

Enum

Description

Text

Displays a text field. The database field must be of String type.

Number

Displays a numeric field, which can be formatted with decimals and/or currency. The database field must be of Integer or Float type.

CheckBox

Display a CheckBox. The database field must be of Boolean or Integer type.

Date

Displays a date field. The database field must be of Date type.

DateTime

Displays a date time field. The database field must be of DateTime type.

List

Displays a list of values. Initially the selected value, double-clicking a list of possible values. The database field must be of String type.

ProgressBar

Display a ProgressBar inside the cell. The database field must be of Float type.

Color

Displays a Color field that can be selected by double-clicking. The database field must be of String type.

Link

Displays a link field. The database field must be of String type.

EnumCheckBoxValues

Defines the type of value that will be considered for CheckBox type cells.

Enum

Description

TrueFalse

Use this type for Boolean fields.

OneZero

Use this type for Integer fields.

EnumFocusCellBorderType

Defines the type of border displayed for the cell focus.

Enum

Description

Continuous

Displays a continuous line in the cell that has focus.

Dashes

Displays a dashes line in the cell that has focus.

Dots

Displays a dots line in the cell that has focus.

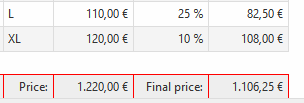

EnumFooterValueType

Defines the type of footer displayed.

Enum

Description

Nothing

Displays Nothing. You can use this to merge footer cells.

Sum

Displays Sum value calculated on all records.

Avg

Displays Average value calculated on all records.

Min

Displays Minimum value calculated on all records.

Max

Displays Maximum value calculated on all records.

Custom

Displays Custom string value chosen by developer.

Header

Displays the Header caption.

Classes

The component contains two classes that specify the columns and rows.

They are:

BaDataGridColumn
BaDataGridRow

Each of these classes contains a set of properties that will allow you to best format your columns and rows.

Property descriptions

AllowMovableColumns As Boolean

Allows you to choose whether the columns are movable.

AllowResizableColumns As Boolean

Allows you to choose whether columns are resizable.

AutoHideScrollbars As Boolean

Allows you to set if the scrollbars are visible or not.

CellBorder As Boolean

Allows you to set whether the cell has a border or not.

CellPadding As Integer

Allows you to set the space between the border and the cell content.

CheckBoxBorderSize As Integer

Allows you to set the border size of the CheckBox.

CheckBoxSize As Integer

Allows you to set the size of the CheckBox.

ColorCellBorder As Color

Allows you to set the border color of the cell.

ColorCellFocusBorder As Color

Allows you to set the border color of the cell that has the focus.

ColorCheckBoxBack As Color

Allows you to set the background color of the CheckBox.

ColorCheckBoxBackAlt As Color

Allows you to set the background color of the CheckBox in alternate rows.

ColorCheckBoxBorder As Color

Allows you to set the border color of the CheckBox.

ColorCheckBoxBorderAlt As Color

Allows you to set the border color of the CheckBox in alternate rows.

ColorCheckBoxFlag As Color

Allows you to set the flag color of the CheckBox.

ColorCheckBoxFlagAlt As Color

Allows you to set the flag color of the CheckBox in alternate rows.

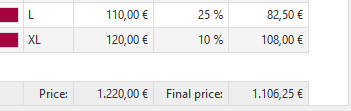

ColorFooterBack As Color

Allows you to set the footer background color.

ColorFooterBorder As Color

Allows you to set the footer border color.

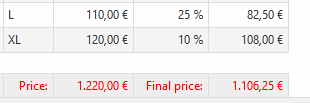

ColorFooterText As Color

Allows you to set the footer text color.

ColorGridBack As Color

Allows you to set the background color of the grid. (beyond cells)

ColorGridBorder As Color

Allows you to set the outer border color of the grid.

ColorHeaderBack As Color

Allows you to set the header background color.

ColorHeaderBorder As Color

Allows you to set the header border color.

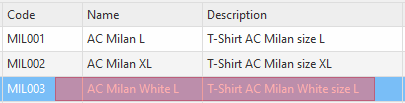

ColorHeaderDrag As Color

Allows you to set the color of the column move placeholder.

ColorHeaderSortIcon As Color

Allows you to set the color of the sort icon.

ColorHeaderText As Color

Allows you to set the header text color.

ColorLink As Color

Allows you to set the text color of links.

ColorLinkAlt As Color

Allows you to set the text color of links in alternate rows.

ColorLinkSelected As Color

Allows you to set the text color of links in selected rows.

ColorProgressbar As Color

Allows you to set the color of progressbars.

ColorProgressbarBorder As Color

Allows you to set the border color of progressbars.

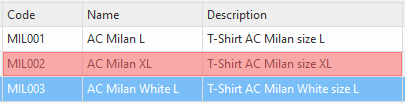

ColorRowsBack As Color

Allows you to set the background color of row.

ColorRowsBackAlt As Color

Allows you to set the background color of row in alternate rows.

ColorRowsBackSelected As Color

Allows you to set the background color of row in the selected rows.

ColorRowsText As Color

Allows you to set the text color of row.

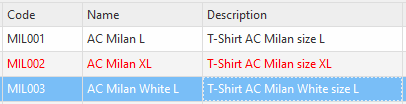

ColorRowsTextAlt As Color

Allows you to set the text color of row in the alternate rows.

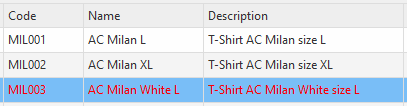

ColorRowsTextSelected As Color

Allows you to set the text color of row in the selected rows.

ColorScrollbarsBack As Color

Allows you to set the background color of the scrollbars.

ColorScrollbarsBackOver As Color

Allows you to set the background color of the scrollbars when then mouse is over

ColorScrollbarsBorder As Color

Allows you to set the border color of the scrollbars.

ColorScrollbarsRect As Color

Allows you to set the background color of the scrollbar cursor.

ColorScrollbarsRectOver As Color

Allows you to set the background color of the scrollbar cursor when the mouse is over.

ColumnLastSelected As Integer

Returns the last selected column.

ColumnNames As String

It's a String containing the list of column caption separated by commas.


BaDataGrid1.ColumnNames = "Id,Name,Surname,Address,City,Country,Phone"

Columns() As BaDataGridColumn

It's an Array of type BaDataGridColumn that represents the list of columns loaded in the grid.


For Each objCol As BaDataGridColumn In BaDataGrid1.Columns
  System.DebugLog("Column - Index: " + objCol.Idx.ToString + " - FieldName: " + objCol.FieldName)
Next objCol

ColumnsVisible As Integer

Returns the number of visible columns in the grid.

ColumnViewStart As Integer

Returns the index of the first visible column in the grid.

ColumnWidths As String

It's a String containing a list of column widths separated by commas.


BaDataGrid1.ColumnWidths = "30,100,100,250,120,120,70"

Container As DesktopContainer

Set DesktopContainer control if the component is into a Container. If the component is directly inside a Windows you have to leave it to Nil.

DbKeyFieldName As String

Allows you to set the name of the key field of the table.

This is for when data is updated.


BaDataGrid1.DbKeyFieldName = "AN02_ID"

DbSource As Database

It allows you to set up a Database object that you will use to load data into the grid.

You can set up all Xojo compatible databases, such as: SQLite, MySQL, PostgreSQL, MS SQL, ODBC, etc.


'### SET DATABASE SOURCE ###
If Self.DbSqlLite = Nil Then
  self.DbSqlLite = New SQLiteDatabase
End If
self.DbSqlLite.DatabaseFile = GetFolderItem( txtDatabase.text, FolderItem.PathTypeNative)

BaDataGrid1.DbSource = self.DbSqlLite

DbTableName As String

Allows you to set the name of the table.

This is for when data is updated.


BaDataGrid1.DbTableName = "AN02_CONTACTS"

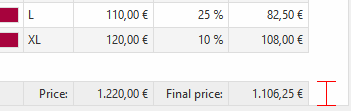

DefaultFooterHeight As Integer

Allows you to set the default footer height.

DefaultHeaderHeight As Integer

Allows you to set the default header height.

DefaultRowHeight As Integer

Allows you to set the default row height.

EditingEnable As Boolean

Allows you to set whether the grid is editable or not. Default is False (not editable).

If you set the value to True you will indicate that the entire grid is editable. In this case you will then have to define for each column which you do not want to be editable.

The DbTableName and DbKeyFieldName properties to allow the grid to update the correct table and record.

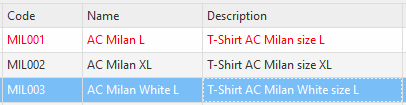

FocusCellBorder As Boolean

Allows you to set whether the selected cell should have the focus border.

FocusCellBorderType As EnumFocusCellBorderType

Allows you to set the focus border type of the selected cell.

FontBold As Boolean

Allows you to set whether the grid font should be bold.

This parameter will be overridden by the same column property (if set).

FontItalic As Boolean

Allows you to set whether the grid font should be italic.

This parameter will be overridden by the same column property (if set).

FontName As String

Allows you to set the grid font name.

This parameter will be overridden by the same column property (if set).

FontSize As Integer

Allows you to set the grid font size.

This parameter will be overridden by the same column property (if set).

FontUnderline As Boolean

Allows you to set whether the grid font should be underline.

This parameter will be overridden by the same column property (if set).

GridBackground As Boolean

Allows you to set whether the grid has a Background.

If set to True, the ColorGridBack property will be used to color the background.

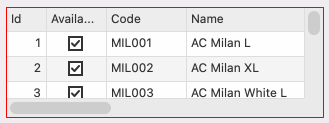

GridBorder As Boolean

Allows you to set whether the grid has a Border.

If set to True, the ColorGridBorder property will be used to color the border, and GridBorderSize for the border with.

GridBorderSize As Integer

Allows you to set whether the border width.

HasFooter As Boolean

Allows you to set if footer is visible.

If set to True, then the Footer will appear at the bottom of the grid.

LicenseCode As String

Allows you to set the license code.

You need to set the license code and license email to the Opening() event.


BaDataGrid1.LicenseEmail = "your-email@your-domain.com"
BaDataGrid1.LicenseCode = "your-license-code"

LicenseEmail As String

Allows you to set the license email.

You need to set the license code and license email to the Opening() event.


BaDataGrid1.LicenseEmail = "your-email@your-domain.com"
BaDataGrid1.LicenseCode = "your-license-code"

LinkFontBold As Boolean

Allows you to set whether the link font should be bold.

This parameter will be overridden by the same column property (if set).

LinkFontItalic As Boolean

Allows you to set whether the link font should be italic.

This parameter will be overridden by the same column property (if set).

LinkFontName As String

Allows you to set the link font name.

This parameter will be overridden by the same column property (if set).

LinkFontSize As Integer

Allows you to set the link font size.

This parameter will be overridden by the same column property (if set).

LinkFontUnderline As Boolean

Allows you to set whether the link font should be underline.

This parameter will be overridden by the same column property (if set).

MinimumColumnResizing As Integer

Allows you to set the minimum column width value when resizing columns.

MouseWheelHorizontalEnabled As Boolean

Allows you to enable or disable horizontal scrolling of the grid with the mouse wheel or trackpad.

MouseWheelVerticalEnabled As Boolean

Allows you to enable or disable vertical scrolling of the grid with the mouse wheel or trackpad.

ReleaseDate As DateTime

Returns the release date of this component.

ReleaseVersion As String

Returns the release version of this component.

RowLastSelected As Integer

Returns the last selected row.

Rows() As BaDataGridRow

It's an Array of type BaDataGridRow that represents the list of rows loaded in the grid.

RowsBackground As Boolean

Allows you to set whether rows have a background.

If set to True, the ColorRowsBack, ColorRowsBackAlt and ColorRowsBackSelected properties will be used to color the background.

RowViewEnd As Integer

Returns the last visible row in the grid.

RowViewStart As Integer

Returns the first visible row in the grid.

ScrollbarsBorder As Boolean

Allows you to set whether scrollbars have a border or not.

ScrollbarsPadding As Integer

Allows you to set the space between the border and the scrollbar cursor.

The total scrollbars size is ScrollbarsSize + ScrollbarsPadding.

ScrollbarsRounded As Integer

Allows you to set the roundness of the scrollbar cursor.

ScrollbarsSize As Integer

Allows you to set the thickness of the scrollbar cursor.

The total scrollbars size is ScrollbarsSize + ScrollbarsPadding.

TimeSelectEnd As DateTime

Returns the end time of execution of the SelectSQL method

TimeSelectStart As DateTime

Returns the start time of execution of the SelectSQL method

Method descriptions

AutoDarkLightMode ()

To auto change all grid colors with O.S. theme color.

You could call this method in the Opening event of the Wondow.


'On "Opening" Event
BaDataGrid1.AutoDarkLightMode

DeleteAllRowsSelected (boolDelRowsFromDatabase as Boolean = True)

Delete all rows selected. You can choose if delete only in view or also in database from boolDelRowsFromDatabase parameter.


Var d As New MessageDialog
Var b As MessageDialogButton
d.IconType = MessageDialog.IconTypes.Question
d.ActionButton.Caption = "Ok"
d.CancelButton.Visible = True
d.CancelButton.Caption = "Cancel"
d.Message = "Do you want to delete all rows selected?"
d.Explanation = "You are about to delete all rows selected only from grid view."
b = d.ShowModal
Select Case b
Case d.ActionButton
  BaDataGrid1.DeleteAllRowsSelected(False)
Case d.AlternateActionButton
Case d.CancelButton
End Select

DeleteRowSelected (boolDelRowFromDatabase as Boolean = True)

Delete row selected. You can choose if delete only in view or also in database from boolDelRowFromDatabase parameter.


Var d As New MessageDialog
Var b As MessageDialogButton
d.IconType = MessageDialog.IconTypes.Question
d.ActionButton.Caption = "Ok"
d.CancelButton.Visible = True
d.CancelButton.Caption = "Cancel"
d.Message = "Do you want to delete the row selected?"
d.Explanation = "You are about to delete the row selected only from grid view."
b = d.ShowModal
Select Case b
Case d.ActionButton
  BaDataGrid1.DeleteRowSelected(False)
Case d.AlternateActionButton
Case d.CancelButton
End Select

GetColumnFromField (strFieldName As String) As BaDataGridColumn

Get column object from field name.


Var objCol As BaDataGridColumn
objCol = BaDataGrid1.GetColumnFromField("AN02_EMAIL")
System.DebugLog("Column - Index: " + objCol.Idx.ToString + " - FieldName: " + objCol.FieldName)

GetColumnFromXY (x as Integer, y as Integer) As BaDataGridColumn

Get column object from X and Y mouse position.


Var objCol As BaDataGridColumn
objCol = BaDataGrid1.GetColumnFromXY(300, 100)
System.DebugLog("Column - Index: " + objCol.Idx.ToString + " - FieldName: " + objCol.FieldName)

GetLayout () As String

Get current layout in a Json string


Var strJson As String
strJson = BaDataGrid1.GetLayout()
System.DebugLog("strJson: " + strJson)

GetRowFromXY (x as Integer, y as Integer) As BaDataGridRow

Get row object from X and Y mouse position.


Var objRow As BaDataGridRow
objRow = BaDataGrid1.GetRowFromXY(100, 300)
System.DebugLog("Row - Index: " + objRow.Idx.ToString + " - Db.Id: " + objRow.DbRow.Column("AN02_ID").StringValue)

RowAdd (objJsonData as JSONItem)

Add a record in the database by passing a JSON.


Var strJson As String = ""
strJson = strJson + "{" + EndOfLine
strJson = strJson + "  ""FIELD01"": ""Value 01""," + EndOfLine
strJson = strJson + "  ""FIELD02"": 0," + EndOfLine
strJson = strJson + "  ""FIELD03"": true," + EndOfLine
strJson = strJson + "  ""FIELD04"": 1.99" + EndOfLine
strJson = strJson + "}" + EndOfLine

Var objJson As New JSONItem(strJson)

BaDataGrid1.RowAdd(objJson)

RowAdd (vFieldKeyValue as Variant)

Add a record in the database by passing the Value of Key Field.


Var varValue As Variant = "VALUE01"

BaDataGrid1.RowAdd(varValue)

RowAddSelect (idxRow as Integer)

Add a row to selected rows from index value.


objRow = BaDataGrid1.RowAddSelect(6)

RowsDeselectAll ()

Deselect all rows.


objRow = BaDataGrid1.RowsDeselectAll()

RowSelect (idxRow as Integer)

Select a row form index value.


objRow = BaDataGrid1.RowSelect(8)

RowsSelectAll ()

Select all rows.


objRow = BaDataGrid1.RowsSelectAll()

RowUpdate (objRow as BaDataGridRow, objCol as BaDataGridColumn, strFieldName as string, varFieldValue as Variant, strNumberFormat as string = "-0.000")

Update a record in the database by code.

Use strNumberFormat param only if field is numeric


BaDataGrid1.RowUpdate(objRow, objCol, "AN01_NAME", "Robert")

BaDataGrid1.RowUpdate(objRow, objCol, "AN01_FINALPRICE", 99.55, "-0.00")

SelectSQL (strSql as String)

Execute as query string where the SQL command is strSql parameter.


'### SET QUERY SQL ###
Var StrSQL As String = ""
StrSQL = StrSQL + "select " + EndOfLine
StrSQL = StrSQL + "AN02_ID, AN02_SEL, AN02_COLOR, AN02_EMAIL, AN02_PROGRESS, AN02_SURNAME, AN02_NAME" + EndOfLine
StrSQL = StrSQL + ", AN02_BIRTHDAY, AN02_INDGENDER, AN02_URL" + EndOfLine
StrSQL = StrSQL + "from AN02_CONTACTS" + EndOfLine
StrSQL = StrSQL + "order by AN02_ID asc" + EndOfLine

'### SET COLUMNS WIDTH ###
Var sColWidth As String = ""
sColWidth = sColWidth + "50," 'AN02_ID
sColWidth = sColWidth + "40," 'AN02_SEL
sColWidth = sColWidth + "50," 'AN02_COLOR
sColWidth = sColWidth + "200," 'AN02_EMAIL
sColWidth = sColWidth + "120," 'AN02_PROGRESS
sColWidth = sColWidth + "150," 'AN02_SURNAME
sColWidth = sColWidth + "150," 'AN02_NAME
sColWidth = sColWidth + "100," 'AN02_BIRTHDAY
sColWidth = sColWidth + "100," 'AN02_INDGENDER
sColWidth = sColWidth + "200," 'AN02_URL
BaDataGrid1.ColumnWidths = sColWidth

'### SET COLUMNS CAPTION ###
Var sColNames As String = ""
sColNames = sColNames + "Id,"
sColNames = sColNames + "Sel.,"
sColNames = sColNames + "Color,"
sColNames = sColNames + "Email,"
sColNames = sColNames + "Progress,"
sColNames = sColNames + "Surname,"
sColNames = sColNames + "Name,"
sColNames = sColNames + "Birthday,"
sColNames = sColNames + "Gender,"
sColNames = sColNames + "Url,"
BaDataGrid1.ColumnNames = sColNames

'### SET TABLE NAME (for data Update) ###
BaDataGrid1.DbTableName = "AN02_CONTACTS"

'### SET KEY FIELD NAME (for data Update) ###
BaDataGrid1.DbKeyFieldName = "AN02_ID"

'### EXECUTE SQL QUERY ###
BaDataGrid1.SelectSQL(StrSQL)

SetLayout (strJson as String, boolSort as Boolean = False)

Set current layout from a Json string


Var strJson As String
strJson = LoadFromFile()
BaDataGrid1.SetLayout(strJson)

ShowGrid ()

Show data grid with result data.


objRow = BaDataGrid1.ShowGrid()

ShowSettings ()

Show settings grid, with column and properties about data.


objRow = BaDataGrid1.ShowSettings()

Sort (objCol As BaDataGridColumn, bAddColumnSorting As Boolean = False)

Sort result data with column object. You can choose if order by column or if add column to last columns ordered.


'to set first ordered column
Var objCol As BaDataGridColumn = BaDataGrid1.Columns(5)
objCol.Sorted = True
objCol.SortedAscending = True
BaDataGrid1.Sort(objCol)

'to add second ordered column
Var objCol2 As BaDataGridColumn = BaDataGrid1.Columns(3)
objCol2.Sorted = True
objCol2.SortedAscending = False
BaDataGrid1.Sort(objCol2, True) 'pass True as the second parameter

Event descriptions

CellClick (x As Integer, y As Integer, objRow As BaDataGridRow, objCol As BaDataGridColumn) As Boolean

This event fires when you click the mouse in a grid cell.

The X position of the mouse cursor.

The Y position of the mouse cursor.

The objRow parameter returns the row object (BaDataGridRow).

The objCol parameter returns the column object (BaDataGridColumn).

CellDoubleClick (x As Integer, y As Integer, objRow As BaDataGridRow, objCol As BaDataGridColumn) As Boolean

This event fires when you double click the mouse in a grid cell.

The X position of the mouse cursor.

The Y position of the mouse cursor.

The objRow parameter returns the row object (BaDataGridRow).

The objCol parameter returns the column object (BaDataGridColumn).

CellValueChanged (varOldVal as Variant, varNewVal as Variant, objCol As BaDataGridColumn, objRow As BaDataGridRow) As Boolean

This event fires when the value of a cell changes.

The varOldVal parameter represents the previous cell value.

The varNewVal parameter represents the new cell value.

The objCol parameter returns the column object (BaDataGridColumn).

The objRow parameter returns the row object (BaDataGridRow).

If you return True the operation is canceled.


System.DebugLog CurrentMethodName _
  + " - OldVal: " + varOldVal.StringValue _
  + " - NewVal: " + varNewVal.StringValue _
  + " - FieldName: " + objCol.FieldName

'If you return True the operation is canceled
'Return True

DarkLightModeChanged ()

This event fires after AutoDarkLightMode method is called, after changed all colors.


'Inside the event, that is after all the colors have been changed, you can choose whether to change anything else.
BaDataGrid1.ColorLink = &cFF000000
BaDataGrid1.ColorProgressbar = &c0096FF00

DatabaseDeleteAllRowsError (strFieldKeyName as String, strIdxsList as String, objRowsToDelete() As BaDataGridRow, intError As Integer, strError As String, strQueryDelete as String)

This event fires after method DeleteAllRowsSelected() when an error occurs.

The strFieldKeyName parameter returns the key field name.

The strIdxsList parameter returns the comma-separated list of indexes of the rows it tried to delete.

The objRowsToDelete() parameter returns an Array objects of rows (BaDataGridRow) that it tried to delete.

The intError returns Integer Error value.

The strError returns String Error value.

The strQueryDelete returns the SQL command used.


System.DebugLog CurrentMethodName _
  + " - strFieldKeyName: " + strFieldKeyName _
  + " - sIdxsList: " + strIdxsList _
  + " - Error: " + intError.ToString + " - " + strError

System.DebugLog "strQueryDelete:"
System.DebugLog strQueryDelete

DatabaseDeleteRowError (strFieldKeyName as String, varFieldKeyValue as Variant, objRowToDelete As BaDataGridRow, intError As Integer, strError As String, strQueryDelete as String)

This event fires after method DeleteRowSelected() when an error occurs.

The strFieldKeyName parameter returns the key field name used.

The varFieldKeyValue parameter returns the key field value used.

The objRowToDelete parameter returns a row (BaDataGridRow) that it tried to delete.

The intError returns Integer Error value.

The strError returns String Error value.

The strQueryDelete returns the SQL command used.


System.DebugLog CurrentMethodName _
  + " - strFieldKeyName: " + strFieldKeyName _
  + " - varFieldKeyValue: " + varFieldKeyValue.StringValue _
  + " - ID RowToDelete: " + objRowToDelete.DbRow.ColumnAt(0).StringValue _
  + " - Error: " + intError.ToString + " - " + strError

System.DebugLog "strQueryDelete:"
System.DebugLog strQueryDelete

DatabaseInserted ()

This event fires when a record is inserted.

Typically in this event the code to go to end of grid is used.


BaDataGrid1.RowSelectLastRecord()

DatabaseInsertedError (intError as Integer, strError as String, strQueryInsert as String)

This event fires when you try to insert a record in the database but an error occurs.

The intError returns Integer Error value.

The strError returns String Error value.

The strQueryInsert returns the SQL command used.


System.DebugLog CurrentMethodName _
  + " - Error: " + intError.ToString + " - " + strError

System.DebugLog strQueryInsert

DatabaseUpdated (strFieldKeyName as String, varFieldKeyValue as Variant, objCol as BaDataGridColumn, objRow as BaDataGridRow, varNewValue as Variant)

This event fires when the database is updated.

The strFieldKeyName parameter returns the key field name updated.

The varFieldKeyValue parameter returns the key field value updated.

The objCol parameter returns the current column (BaDataGridColumn) updated.

The objRow parameter returns the current row (BaDataGridRow) updated.

The varNewValue returns Variant new value.


System.DebugLog CurrentMethodName _
  + " - strFieldKeyName: " + strFieldKeyName _
  + " - varFieldKeyValue: " + varFieldKeyValue.StringValue _
  + " - varNewValue: " + varNewValue.StringValue.StringValue _
  + " - objCol.FieldName: " + objCol.FieldName

DatabaseUpdateError (strFieldKeyName as String, varFieldKeyValue as Variant, objCol as BaDataGridColumn, objRow as BaDataGridRow, intError as Integer, strError as String, strQueryUpdate as String)

This event fires when you try to update the database but an error occurs.

The strFieldKeyName parameter returns the key field name used.

The varFieldKeyValue parameter returns the key field value used.

The objCol parameter returns the column (BaDataGridColumn) used.

The objRow parameter returns the row (BaDataGridRow) used.

The intError returns Integer Error value.

The strError returns String Error value.

The strQueryUpdate returns the SQL command used.


System.DebugLog CurrentMethodName _
  + " - strFieldKeyName: " + strFieldKeyName _
  + " - varFieldKeyValue: " + varFieldKeyValue.StringValue _
  + " - Error: " + intError.ToString + " - " + strError

System.DebugLog strQueryUpdate

FooterCellBackgroundPaint (picFooter as Picture, objCol as BaDataGridColumn) As Boolean

This event fires before a footer cell is redrawn. (redraw background)

The picFooter parameter returns the graphic object to draw on.

The objCol parameter returns the current column (BaDataGridColumn).

If you return True the picFooter object will overlap the header cell.

If you return False (or you don't use the event), then it will not be redrawn.


If objCol.FieldName = "AN02_NAME" Then

  picFooter.Graphics.DrawingColor = &cFF930000
  picFooter.Graphics.FillRectangle (picFooter.Graphics.Width/2), 5, 15, 15

  picFooter.Graphics.DrawingColor = &cFEFEFE00
  picFooter.Graphics.DrawLine (picFooter.Graphics.Width/2), 5, (picFooter.Graphics.Width/2)+15, 20

  Return True
End If

FooterCellPaint (picFooter as Picture, objCol as BaDataGridColumn) As Boolean

This event fires after a header cell is redrawn. (redraw over)

The picFooter parameter returns the graphic object to draw on.

The objCol parameter returns the current column (BaDataGridColumn).

If you return True the picFooter object will overlap the header cell.

If you return False (or you don't use the event), then it will not be redrawn.


If objCol.FieldName = "AN02_NAME" Then

  picFooter.Graphics.DrawingColor = &cFF930000
  picFooter.Graphics.FillRectangle (picFooter.Graphics.Width/2), 5, 15, 15

  picFooter.Graphics.DrawingColor = &cFEFEFE00
  picFooter.Graphics.DrawLine (picFooter.Graphics.Width/2), 5, (picFooter.Graphics.Width/2)+15, 20

  Return True
End If

GenericError (strMethodName as String, intErrorNumber as Integer, strErrorMessage as String)

This event fires when an unhandled generic error is generated.

The strMethodName parameter returns the key field name used.

The intErrorNumber returns Integer Error value.

The strErrorMessage returns String Error value.


System.DebugLog CurrentMethodName _
  + " - strMethodName: " + strMethodName _
  + " - Error: " + intErrorNumber.ToString + " - " + strErrorMessage

HeaderCellBackgroundPaint (picHeader as Picture, objCol as BaDataGridColumn) As Boolean

This event fires before a header cell is redrawn. (redraw background)

The picHeader parameter returns the graphic object to draw on.

The objCol parameter returns the current column (BaDataGridColumn).

If you return True the picHeader object will overlap the header cell.

If you return False (or you don't use the event), then it will not be redrawn.


If objCol.FieldName = "AN02_NAME" Then

  picHeader.Graphics.DrawingColor = &cFF930000
  picHeader.Graphics.FillRectangle (picHeader.Graphics.Width/2), 5, 15, 15

  picHeader.Graphics.DrawingColor = &cFEFEFE00
  picHeader.Graphics.DrawLine (picHeader.Graphics.Width/2), 5, (picHeader.Graphics.Width/2)+15, 20

  Return True
End If

HeaderCellPaint (picHeader as Picture, objCol as BaDataGridColumn) As Boolean

This event fires after a header cell is redrawn. (redraw over)

The picHeader parameter returns the graphic object to draw on.

The objCol parameter returns the current column (BaDataGridColumn).

If you return True the picHeader object will overlap the header cell.

If you return False (or you don't use the event), then it will not be redrawn.


If objCol.FieldName = "AN02_NAME" Then

  picHeader.Graphics.DrawingColor = &cFF930000
  picHeader.Graphics.FillRectangle (picHeader.Graphics.Width/2), 5, 15, 15

  picHeader.Graphics.DrawingColor = &cFEFEFE00
  picHeader.Graphics.DrawLine (picHeader.Graphics.Width/2), 5, (picHeader.Graphics.Width/2)+15, 20

  Return True
End If

LinkCalled (strUrl as String, objCol as BaDataGridColumn, objRow as BaDataGridRow) As Boolean

This event fires when a link cell is clicked.

The strUrl parameter returns the cell value.

The objCol parameter returns the column object (BaDataGridColumn).

The objRow parameter returns the row object (BaDataGridRow).


Select Case objCol.FieldName
Case "AN02_URL"
  ShowURL(strUrl)
Case "AN02_EMAIL"
  ShowURL("mailto:" + strUrl)
End Select
'If you want break selection return true value
Return True

MouseDown (x as Integer, y as Integer)

This event fires while the mouse button is being held down.

The x and y parameters represent the cursor position.

MouseEnter ()

The mouse has entered the area of the control.

MouseExit ()

The mouse has left the area of the control.

MouseMove (x as Integer, y as Integer)

The mouse has moved within the control.

The x and y parameters represent the cursor position.

MouseUp (x as Integer, y as Integer)

The mouse button was released.

The x and y parameters represent the cursor position.

Opening ()

The control is about to be displayed. Use this event to initialize a control.

The Opening event is called after the Constructor.

You need to set the license code and license email to the Opening() event.


BaDataGrid1.LicenseEmail = "your-email@your-domain.com"
BaDataGrid1.LicenseCode = "your-license-code"

QueryExecuted strQuerySql as String

This event fires after the SelectSQL() method.

The strQuerySql parameter returns the SQL string used.

RowDeleted (idxRowDeleted as Integer, objRowDeleted as BaDataGridRow, boolDelRowFromDatabase as Boolean)

This event fires after the DeleteRowSelected() method.

The idxRowDeleted parameter returns the index of the deleted row.

The objRowDeleted parameter returns the object (BaDataGridRow) of the deleted row.

The boolDelRowFromDatabase parameter returns whether the row was chosen to be deleted from the database as well.


System.DebugLog CurrentMethodName _
  + " - idxRowDeleted: " + idxRowDeleted.ToString _
  + " - ID: " + objRowDeleted.DbRow.ColumnAt(0).StringValue

RowsCellBackgroundPaint (picCell as Picture, objCol as BaDataGridColumn, objRow as BaDataGridRow) As Boolean

This event fires before a grid cell is redrawn. (redraw background)

The picCell parameter returns the graphic object to draw on.

The objCol parameter returns the current column (BaDataGridColumn).

The objRow parameter returns the current row (BaDataGridRow).

If you return True the picCell object will overlap the grid cell.

If you return False (or you don't use the event), then it will not be redrawn.


If objCol.FieldName = "AN02_SURNAME" Then

  picCell.Graphics.DrawingColor = &c99FF0000
  picCell.Graphics.DrawOval picCell.Graphics.Width-24, 3, 20, 20

  Return True
End If

RowsCellPaint (picCell as Picture, objCol as BaDataGridColumn, objRow as BaDataGridRow) As Boolean

This event fires after a grid cell is redrawn. (redraw over)

The picCell parameter returns the graphic object to draw on.

The objCol parameter returns the current column (BaDataGridColumn).

The objRow parameter returns the current row (BaDataGridRow).

If you return True the picCell object will overlap the grid cell.

If you return False (or you don't use the event), then it will not be redrawn.


If objCol.FieldName = "AN02_SURNAME" Then

  picCell.Graphics.DrawingColor = &c99FF0000
  picCell.Graphics.DrawOval picCell.Graphics.Width-24, 3, 20, 20

  Return True
End If

RowsDeleted (idxsRowsDeleted as String, objRowsDeleted() as BaDataGridRow, boolDelRowFromDatabase as Boolean)

This event fires after the DeleteAllRowsSelected() method.

The idxsRowsDeleted parameter returns a comma-separated String of indexes that it tried to delete.

The objRowsDeleted() parameter returns an Array objects of rows (BaDataGridRow) that it tried to delete.

The boolDelRowFromDatabase parameter returns whether the rows was chosen to be deleted from the database as well.

RowSelected (idxRowSelected as Integer, objRowSelected as BaDataGridRow)

This event fires when a row in the grid is selected.

The idxRowSelected parameter returns the index of selected row.

The objRowSelected parameter returns the objects of row (BaDataGridRow) of selected row.

SettingsChanged ()

This event fires when the grid settings are changed.

StartDrag (x As Integer, y As Integer, objRowsDragged() As BaDataGridRow)

This event fires when the drag begins.

The parameters x and y return the cursor position.

The objRowsDragged() parameter returns an Array of selected row objects (BaDataGridRow).

In this example we use LastRowsDragged variable to save dragged rows. In this way after we can drop them in other control.


System.DebugLog CurrentMethodName

'Creates a picture to show while dragging
Var mImage As New Picture(150, 30)
mImage.Graphics.DrawingColor = &cFCFCFC00
mImage.Graphics.FillRoundRectangle 0, 0, mImage.Width, mImage.Height, 6, 6
mImage.Graphics.DrawingColor = &c33333300
mImage.Graphics.DrawRoundRectangle 0, 0, mImage.Width, mImage.Height, 6, 6
mImage.Graphics.DrawText "Total drag rows: " + objRowsDragged.Count.ToString, 10, 20

'Create DragItem object
Var d As New DragItem(Me, x+20, y+20, mImage.Width, mImage.Height)
d.Picture = mImage
d.DragPicture = mImage

Self.LastRowsDragged = objRowsDragged

'Activate dragging
d.Drag

BaDataGridColumn Class

The BaDataGridColumn class manages the properties of each column.


Var objCol As BaDataGridColumn = BaDataGrid1.Columns(0)
System.DebugLog objCol.FieldName

Immediately after calling the BaDataGrid1.SelectSQL() method all columns will inherit properties from the grid. So if you want to customize some columns you will have to do it after calling the SelectSQL method.


'### EXECUTE SQL QUERY ###
BaDataGrid1.SelectSQL(StrSQL)

'### AFTER QUERY can sets Columns property ###
BaDataGrid1.EditingEnable = True
BaDataGrid1.CheckBoxSize = 15
'AN02_ID - 0
BaDataGrid1.Columns(0).Type = BaDataGrid.EnumCellType.Number
BaDataGrid1.Columns(0).Alignment = BaDataGrid.EnumAlignment.RightMiddle
BaDataGrid1.Columns(0).TextMaxLength = 18
BaDataGrid1.Columns(0).EditingEnable = False
'AN02_SEL - 1
BaDataGrid1.Columns(1).Type = BaDataGrid.EnumCellType.CheckBox
BaDataGrid1.Columns(1).CheckBoxValues = BaDataGrid.EnumCheckBoxValues.TrueFalse
BaDataGrid1.Columns(1).Alignment = BaDataGrid.EnumAlignment.CenterMiddle
'AN02_COLOR - 2
BaDataGrid1.Columns(2).Type = BaDataGrid.EnumCellType.Color
BaDataGrid1.Columns(2).TextMaxLength = 10
'AN02_EMAIL - 3
BaDataGrid1.Columns(3).TextMaxLength = 255
BaDataGrid1.Columns(3).Type = BaDataGrid.EnumCellType.Link
'AN02_PROGRESS - 4
BaDataGrid1.Columns(4).Type = BaDataGrid.EnumCellType.ProgressBar
BaDataGrid1.Columns(4).ProgressValueMax = 310.55
BaDataGrid1.Columns(4).ProgressValueMin = 120.99
'AN02_SURNAME - 5
BaDataGrid1.Columns(5).TextMaxLength = 50
'AN02_NAME - 6
BaDataGrid1.Columns(6).TextMaxLength = 50
'AN02_BIRTHDAY - 7
BaDataGrid1.Columns(7).Type = BaDataGrid.EnumCellType.Date
BaDataGrid1.Columns(7).DateFormat = "dd/MM/YYYY"
BaDataGrid1.Columns(7).Alignment = BaDataGrid.EnumAlignment.CenterMiddle
'AN02_INDGENDER - 8
BaDataGrid1.Columns(8).Type = BaDataGrid.EnumCellType.List
BaDataGrid1.Columns(8).ListValues.Add ""      '0
BaDataGrid1.Columns(8).ListValues.Add "Man"   '1
BaDataGrid1.Columns(8).ListValues.Add "Woman" '2
'AN02_URL - 9
BaDataGrid1.Columns(9).TextMaxLength = 255
BaDataGrid1.Columns(9).Type = BaDataGrid.EnumCellType.Link

'### REDRAW GRID ###
BaDataGrid1.Refresh

BaDataGridColumn Properties

Name

Type

Default

Alignment

EnumAlignment

LeftMiddle

Caption

String

Inherited

CheckBoxValues

EnumCheckBoxValues

ColorMarginHorizontal

ColorMarginVertical

ColorRounded

DateFormat

dd/MM/YYYY

EditingEnable

Boolean

Inherited

FieldName

String

Inherited

FontBold

Boolean

Inherited

FontItalic

Boolean

Inherited

FontName

String

Inherited

FontSize

Integer

Inherited

FontUnderline

Integer

Inherited

FooterAlignment

EnumAlignment

LeftMiddle

FooterIcon


Nil

FooterIconAlignment

EnumAlignment

LeftMiddle

FooterNumberFormat

String

FooterValueType

EnumFooterValueType

Sum

HeaderAlignment

EnumAlignment

LeftMiddle

HeaderIcon


Nil

HeaderIconAlignment

EnumAlignment

LeftMiddle

Idx

Integer

Left

Integer

Inherited

ColorLink

Color

Inherited

ColorLinkAlt

Color

Inherited

ColorLinkSelected

Color

Inherited

LinkFontBold

Boolean

Inherited

LinkFontItalic

Boolean

Inherited

LinkFontName

String

Inherited

LinkFontSize

Integer

Inherited

LinkFontUnderline

Boolean

Inherited

ListHeight

Integer

Inherited

ListValues()

String

ListWidth

Integer

Inherited

MinimumColumnResizing

Integer

Inherited

NumberFormat

String

ColorProgressbar

Color

&cB1F1B500

ColorProgressbarBorder

Color

&cDDDDDD00

ProgressMarginHorizontal

Integer

ProgressMarginVertical

Integer

ProgressRounded

Integer

ProgressValueMax

Double

0.00

ProgressValueMin

Double

0.00

Sorted

Boolean

False

SortedAscending

Boolean

False

SortEnable

Boolean

False

Tag

TextMaxLength

Type

ValueAvg

0.00

ValueCustom

String

ValueMax

Double

0.00

ValueMin

Double

0.00

ValueSum

Double

0.00

Visible

Boolean

Inherited

Width

Integer

Inherited

BaDataGridRow Class

The BaDataGridRow class manages the properties of each row.


Var objRow As BaDataGridRow = BaDataGrid1.Rows(0)
System.DebugLog objRow.Idx.ToString

Immediately after calling the BaDataGrid1.SelectSQL() method all rows will inherit properties from the grid. So if you want to customize some rows you will have to do it after calling the SelectSQL method.

The DbRow property is of type DatabaseRow. This will allow you to interact with the database row data.
